Fisheries Impacts at the Pebble Mine

Road Construction: Potential Fisheries Impacts

Prepared by Dr. William J. Hauser, Fish Talk Consulting

Large metal mines require substantial infrastructure. Roads to support the Pebble Mine could cross 20 known salmon streams and numerous potential fish-bearing streams. This fact sheet describes how road construction can pose barriers to fish passage and what this may mean for fish stocks.

Background

Fish need unobstructed passage among disconnected habitats. Adult fish migrate to spawning and feeding habitats and juvenile fish migrate to and from rearing and refuge habitats. Each stream has unique characteristics. Each fish population in a particular stream is uniquely adapted to maximize survival in that stream. Collectively, populations comprise a complete stock complex that sustains the region’s valuable fisheries. Blocking access to essential habitats can cause declines in fish productivity and diversity reducing the likelihood of long term sustainability. The return of anadromous fish also maintains stream productivity as decomposing carcasses release nutrients to the food chain to provide food for rearing salmon, resident species, terrestrial animals and vegetation.

perched culvert

Neither adult nor juvenile fish can negotiate this perched culvert.

Challenges

A fish population cannot survive if free passage to essential habitats is blocked. Poorly-functioning culverts and bridges create conditions in which water is too shallow or fast for fish to cross, and culverts are too high for fish to jump.

Although well-designed bridges provide better fish access than culverts, culverts are often used and regulators must recognize the need and challenges to assure adequate fish passage. Some challenges include:

Design

  • to accommodate 100-year floods and high water debris
  • to accommodate passage of all fish species of all sizes

Installation

  • according to fish-friendly designs

Maintenance

  • to prevent damming and washouts

In addition, higher gradient streams (> 1%) present greater challenges for design and installation, and stream crossings planned and installed for today’s environmental conditions may become inadequate if global climate change leads to more frequent and intense storms.

How serious is the problem?

Fish passage problems associated with inadequate design, installation, or maintenance of stream crossings, particularly culverts, have been widely documented. Examples include1:

Study Area Date Crossings with passage problems
Tongass National Forest, AK 2000 66% of culverts across salmon streams and 85% of culverts across trout streams considered inadequate
Mat-Su Valley, AK In prep More than 44% of 130 culverts were deemed inadequate for fish passage; 10% were deemed adequate
Kenai Peninsula, AK In prep More than 44% of 130 culverts were deemed inadequate for fish passage; 10% were deemed adequate
Near Tyonek, AK In prep 83% of 29 culverts were deemed inadequate for fish passage; 3% were deemed adequate
Labrador, Canada 2005 53% with poor design or installation
Western Montana 2005 76-85% of culverts were velocity barriers depending on streamflow and fish life stage
California, Washington, Oregon 2000 Current salmon biomass in streams is 3-4% of historic biomass; habitat loss is due in part to obstructed fish passage

What does this mean for the Pebble Project?

A 104-mile access road is proposed from the mine site to a deep-water port in Cook Inlet.2 The road will also serve as a corridor for an ore slurry pipeline, a waterline to return recycled water to the mine site, and a corridor for the power line. Approximately one third of the distance crosses higher-gradient terrain which creates design challenges. The road may require as many as 120 crossings of streams ranging from small and intermittent to large perennial rivers such as the Newhalen River. After this road has been pioneered, the construction of connecting roads and spur roads is likely. Construction and maintenance of these roads are likely to create collateral fish passage issues.

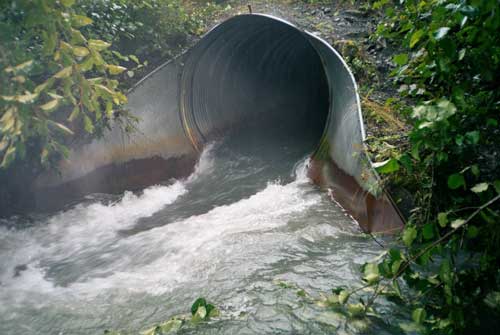

undersized culvert

This culvert is undersized and the water velocity is too fast.

Conclusion

Many streams in the Pebble area support anadromous and resident fish, and all contribute to spawning, rearing, or refuge habitat used by these species over the course of their life-cycles. Poorly designed, installed, or maintained stream crossings will jeopardize fish fully utilizing these streams for spawning, rearing and refuge habitats, reducing population and genetic stock complexity. Such losses of biodiversity can adversely affect long term sustainability of salmon populations.

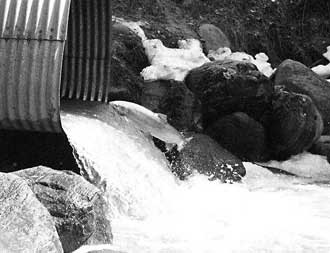

salmon jumping into a culvert


Text by William J. Hauser, Fish Talk Consulting. May, 2008.
Photos credit: Spawning salmon, Mike Wiedmer; Culverts, Alaska Department of Fish and Game.

1 Study references are available in the original paper posted at www.pebblescience.org. Another source of information is Alaska Department of Fish and Game http://www.sf.adfg.state.ak.us/SARR/Fishpassage/fishpass.cfm and USDA Forest Service http://www.stream.fs.fed.us/fishxing/index.html.

2 http://www.pebblepartnership.com/pages/project


Fish Passage Fact Sheet (pdf file 277 kb)


Further Reading and References

Federal Highway Administration. 2007. Design for fish passage at roadway-stream crossings: Synthesis report. Federal Highway Administration, McLean, VA. (pdf file 4.79 mb)
